Material Dock - Upright Duo

Assembly Instructions

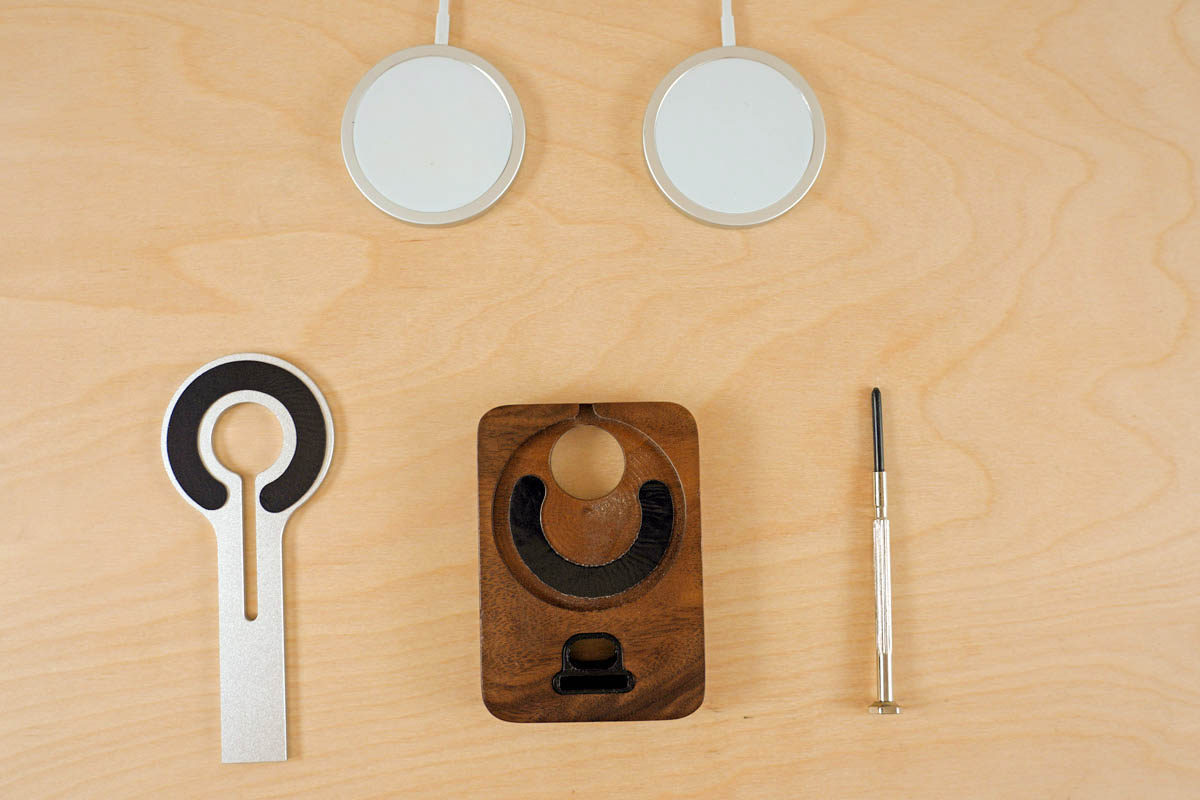

Parts Needed: Wood Base, Upright Support, Screwdriver, Apple MagSafe Charger (2).

Step 1: Affix a MagSafe charger to the Upright Support.

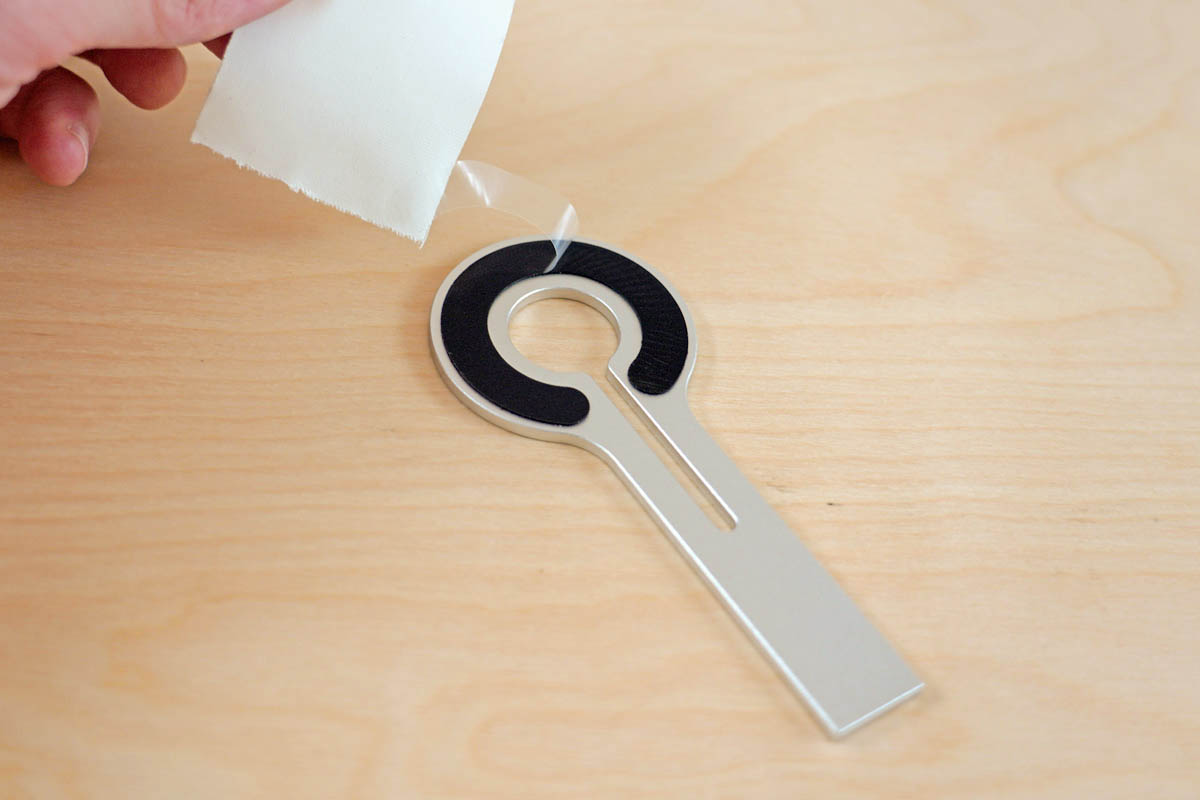

Remove the clear film from the micro-suction pad. (Using a piece of tape makes it easy.)

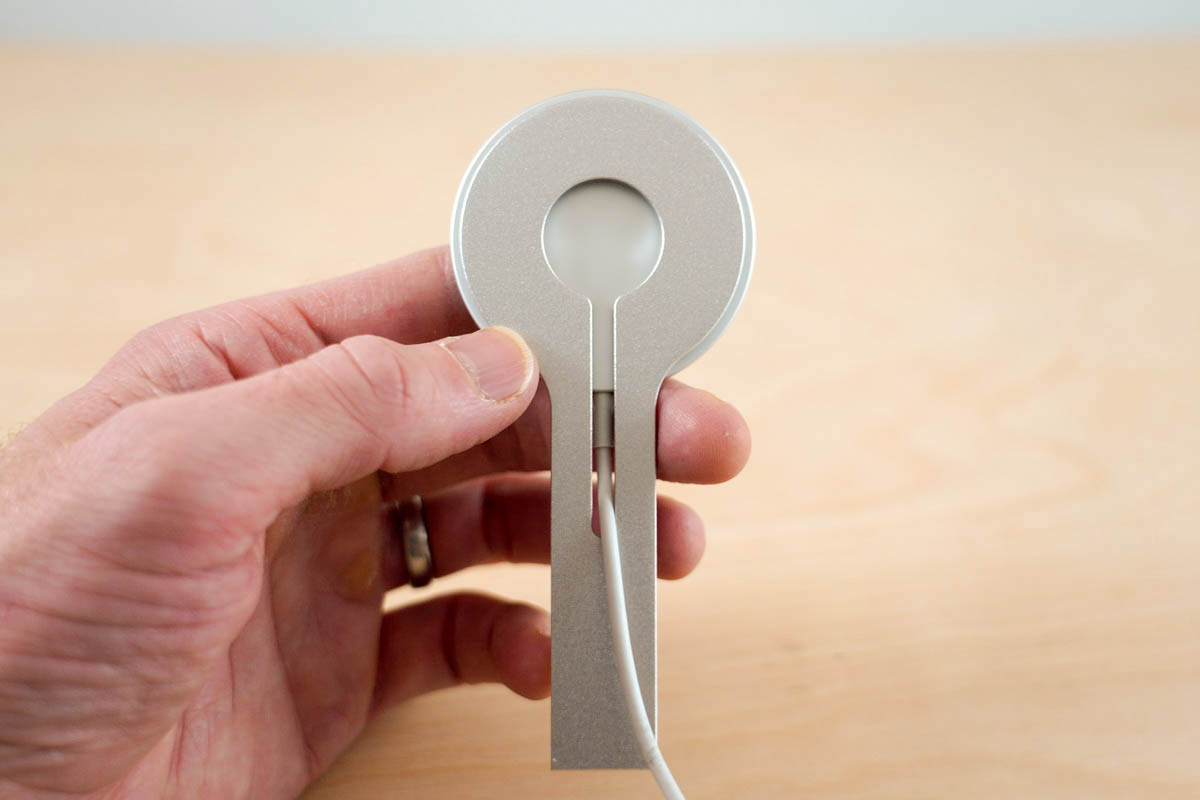

Feed the cable through the hole, then press the MagSafe puck onto the micro-suction pad, visually centering it.

Step 2. Attach the Upright Support to dock base.

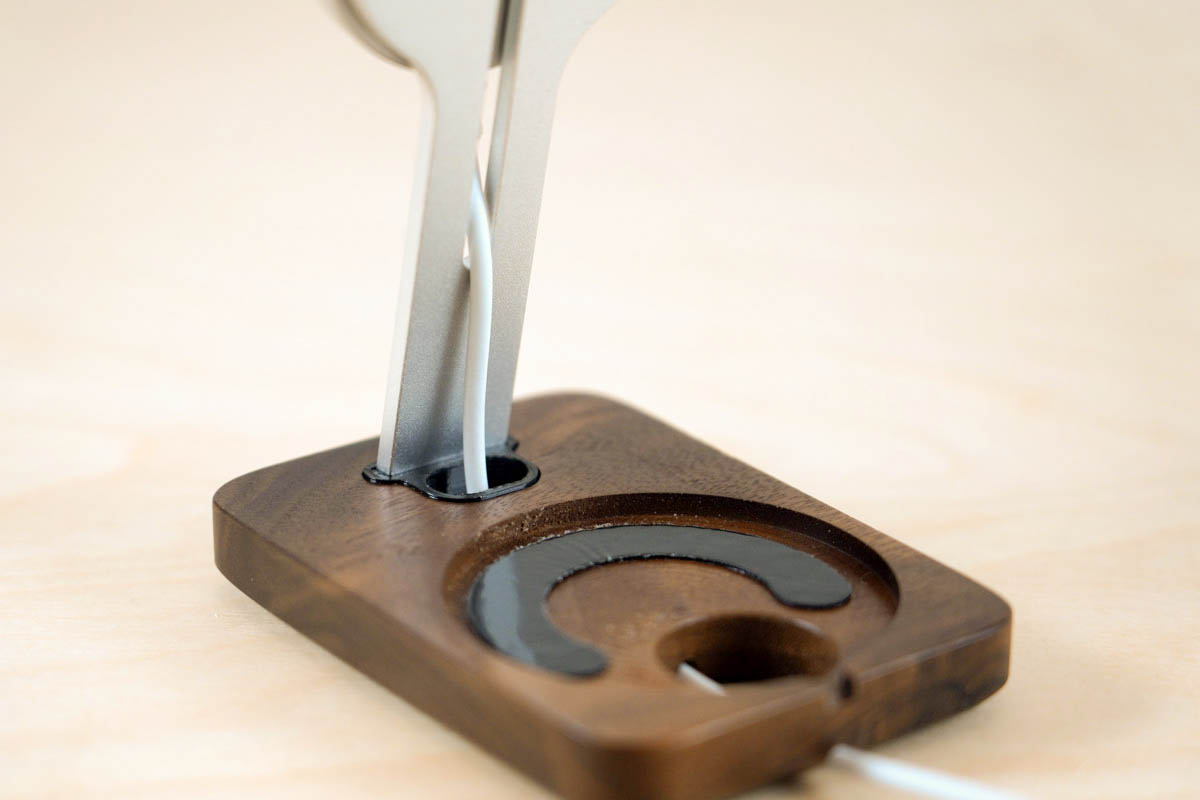

Feed the cable through the hole in the base, then position the Upright Support into the slot, with the MagSafe facing forward.

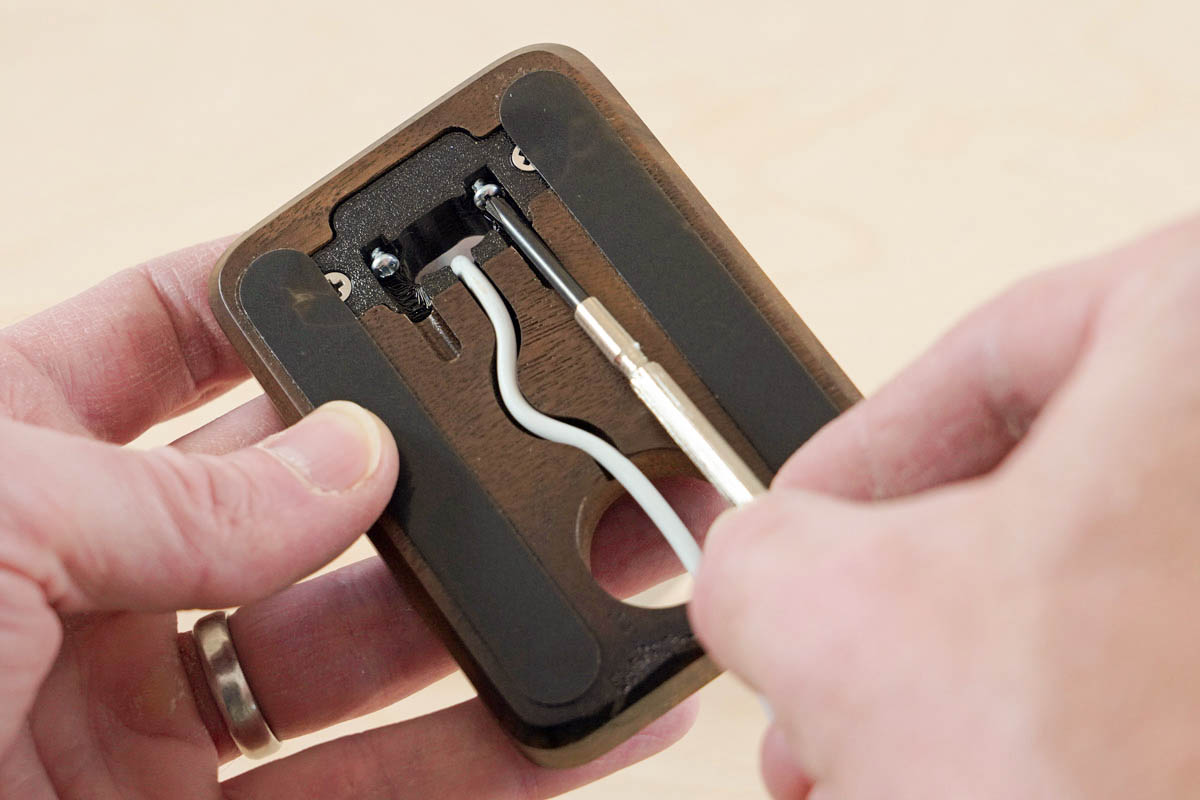

Holding the Upright Support in place, turn the dock upside down and tighten the two screws to secure it. Don't over tighten. If the Upright Support is held firmly against the bottom of the hole, it should be straight.

Step 3. Attach the other MagSafe charger to the wood base.

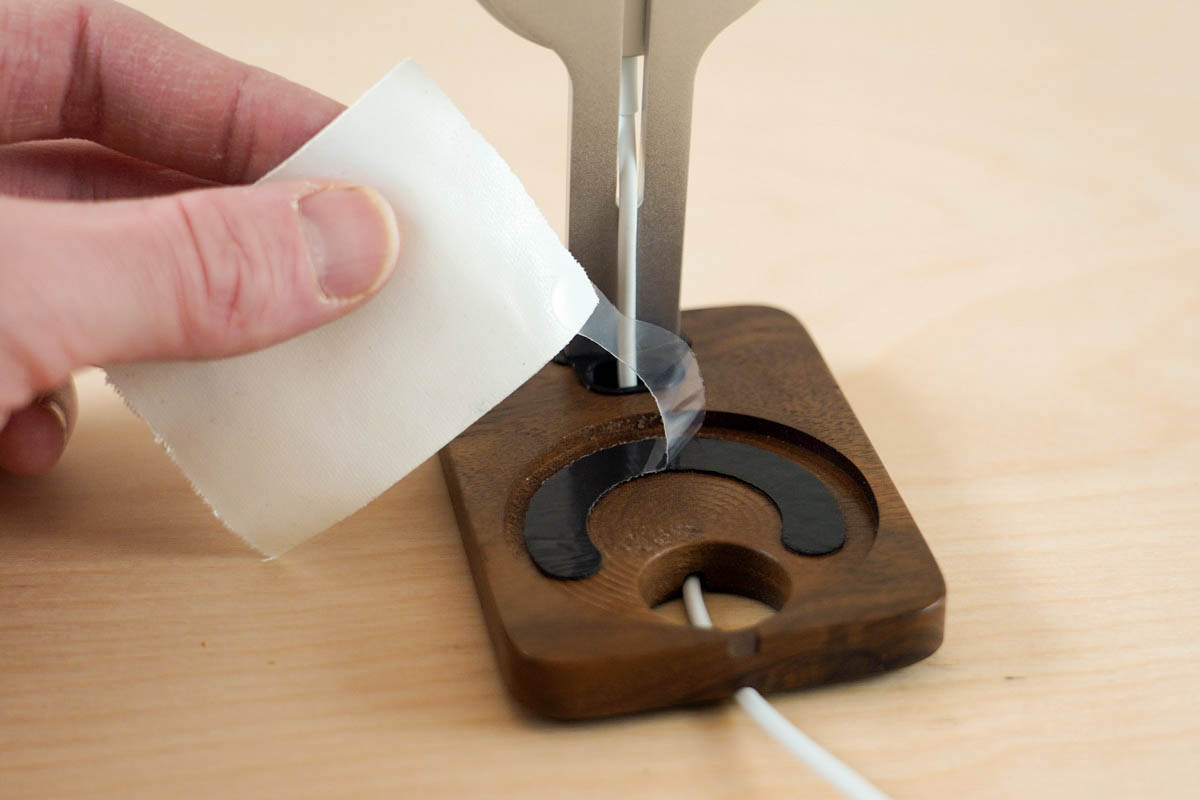

Remove the clear film from the micro-suction pad. (Again, using a piece of tape makes it easy.)

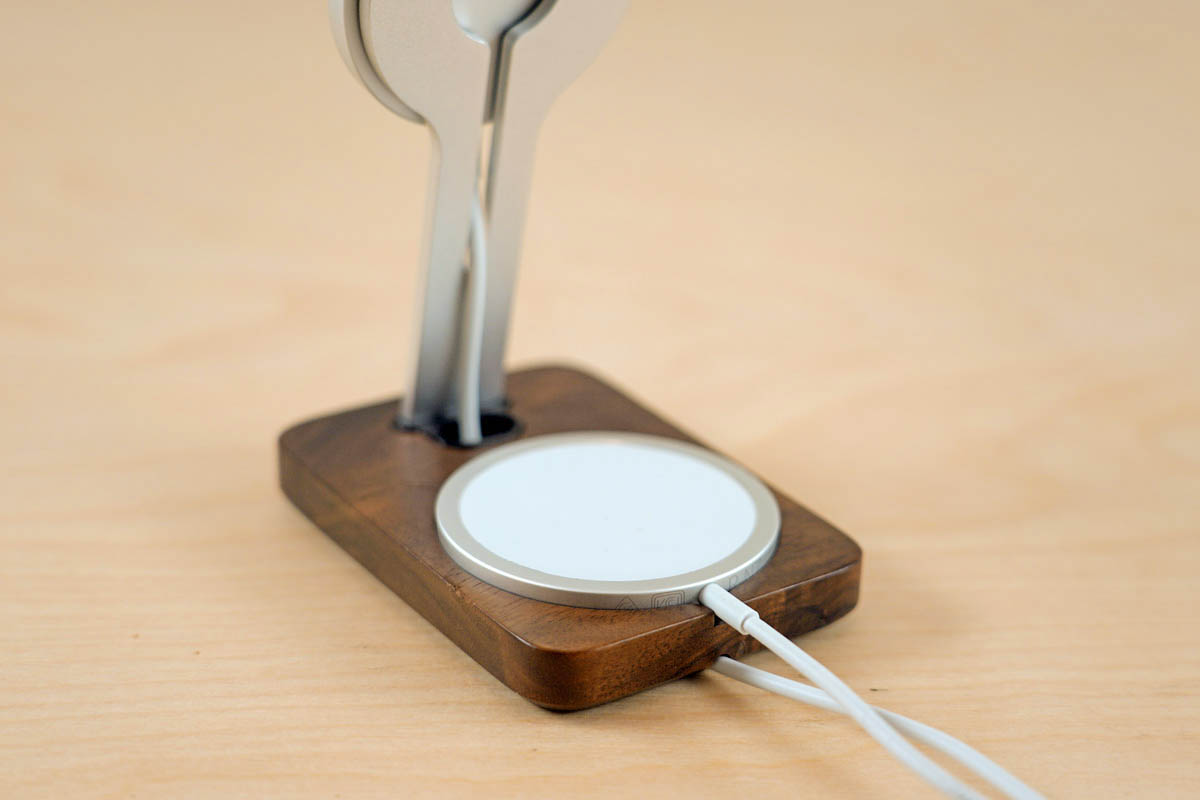

Place the MagSafe cable onto the newly exposed micro-suction pad.

Step 4: Mount your dock.

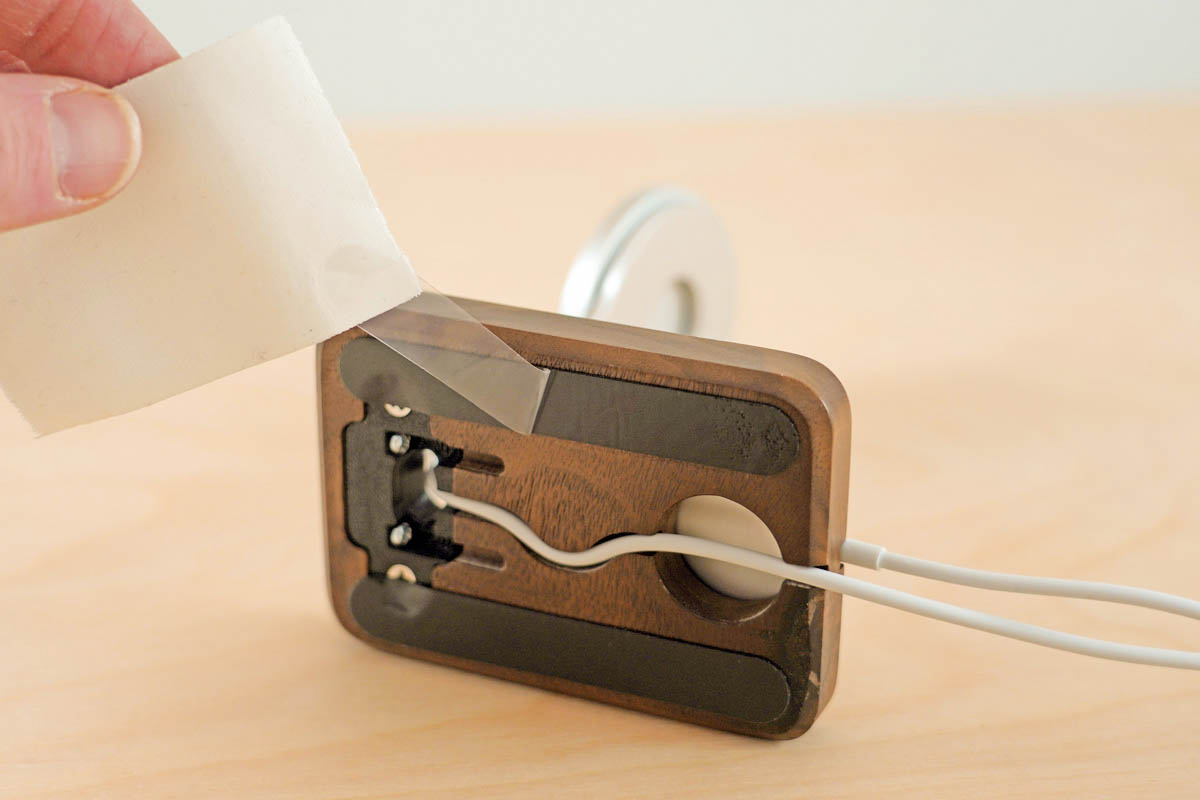

Remove the clear film from the bottom of the dock. (Again, tape is your friend.)

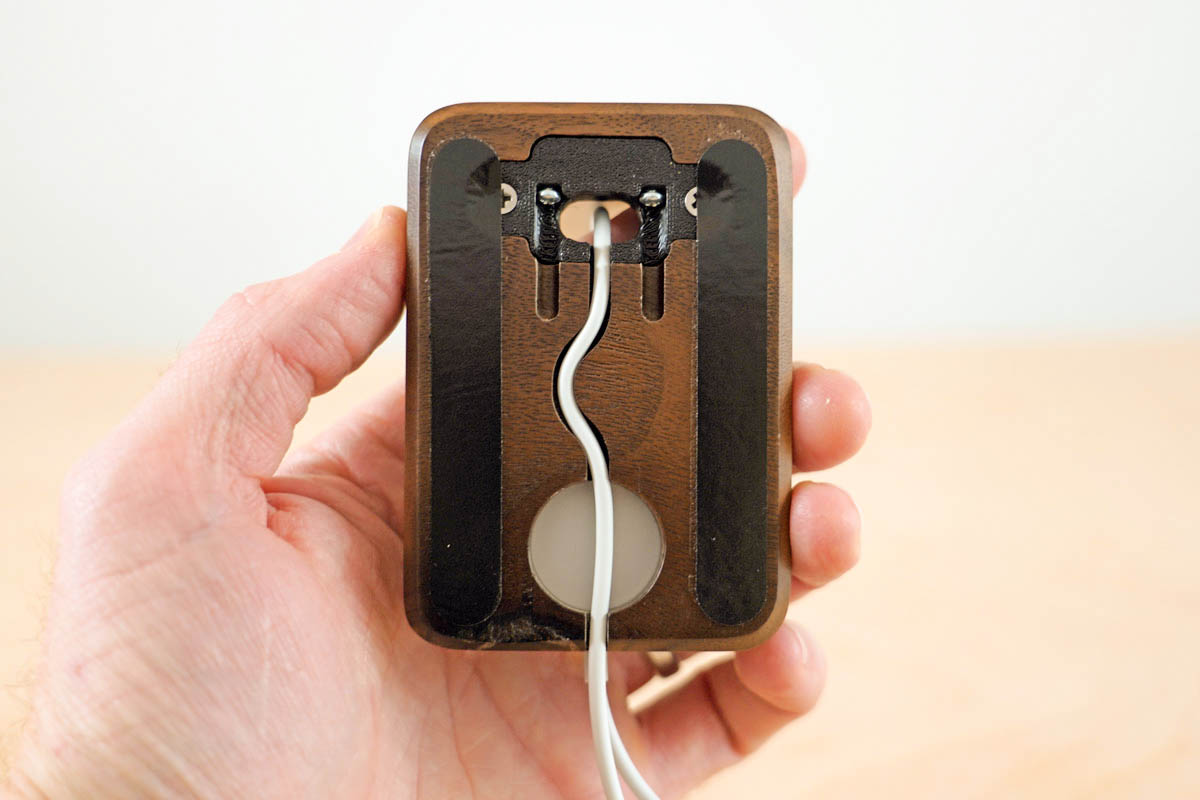

Press the cable into the cable channel on the bottom of the dock.

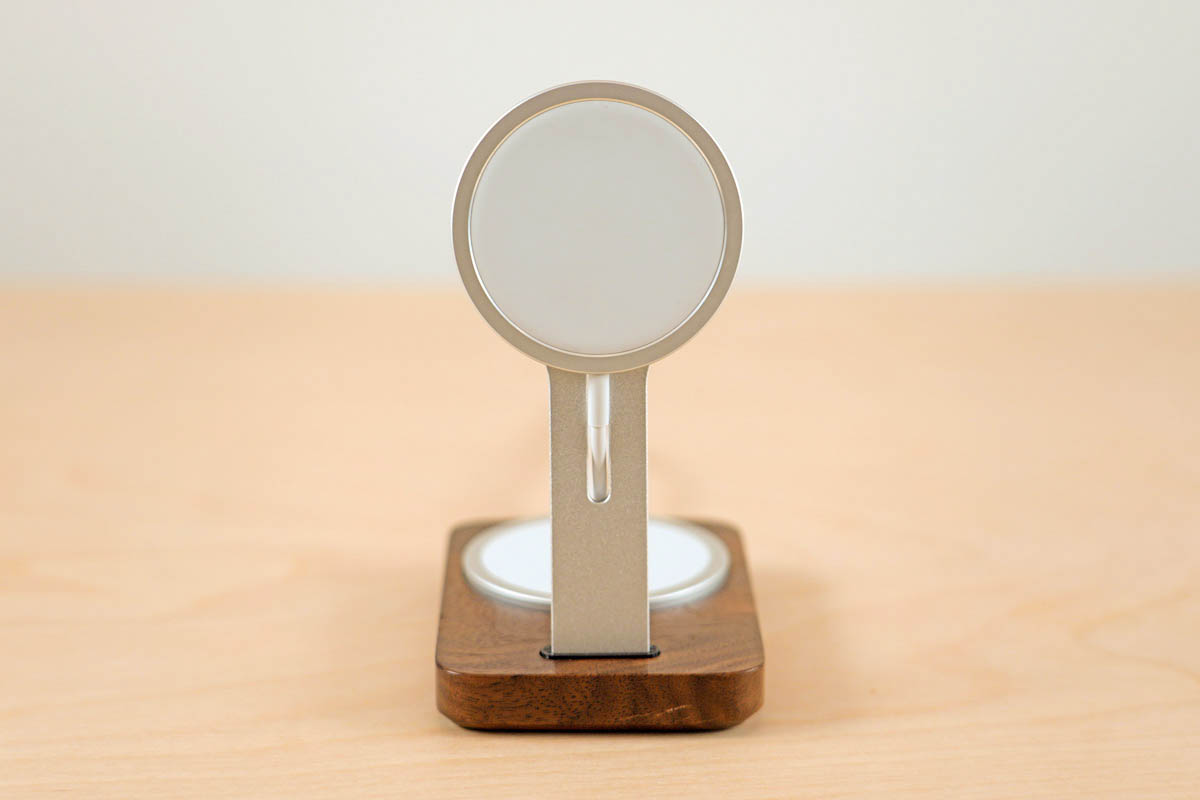

Position the dock where you'd like it and press down. You're finished! *Note* If the micro-suction pads ever lose their stickiness, you can "clean" them with a piece of tape to remove dust, or more thoroughly with soapy water.
